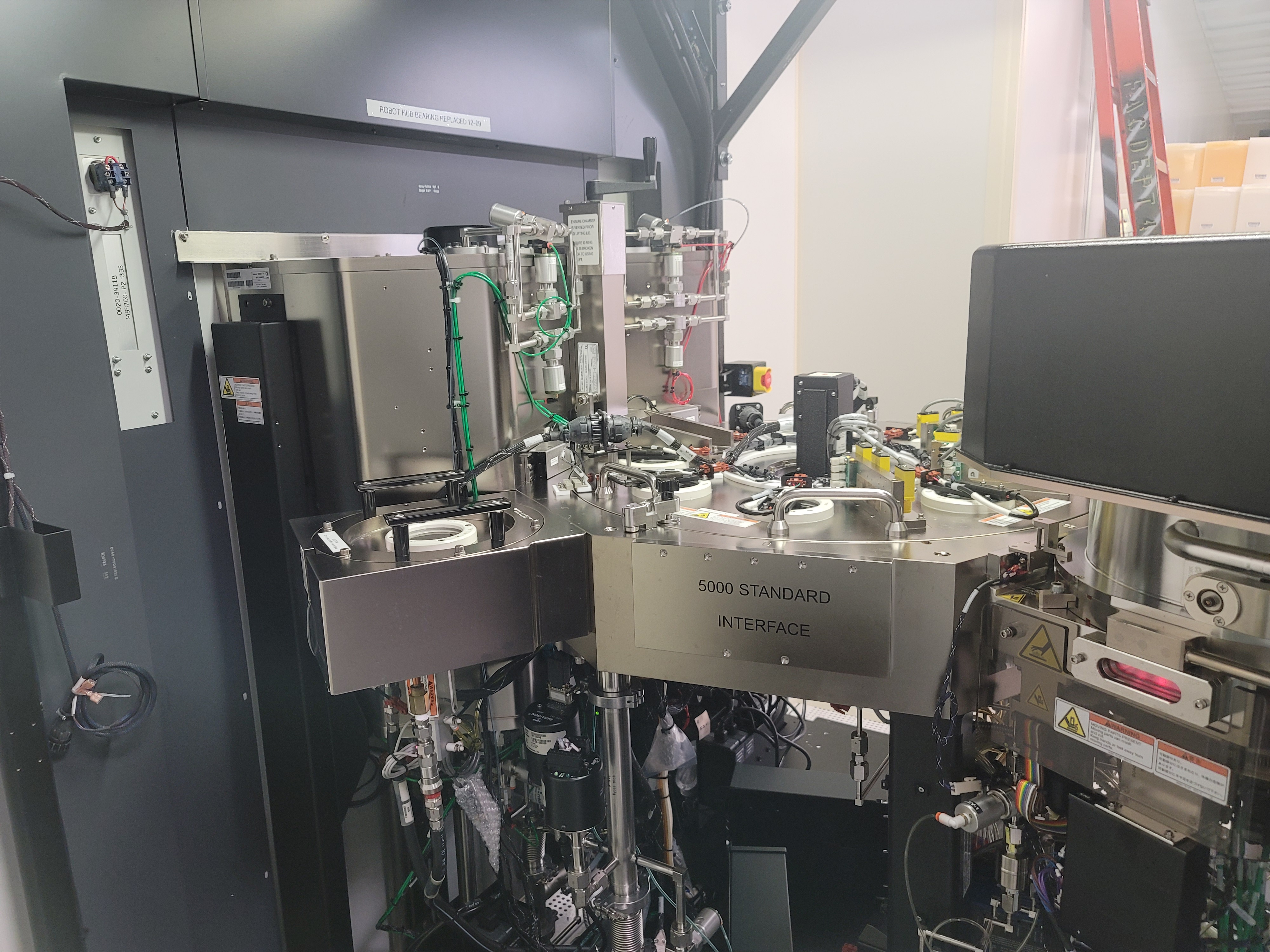

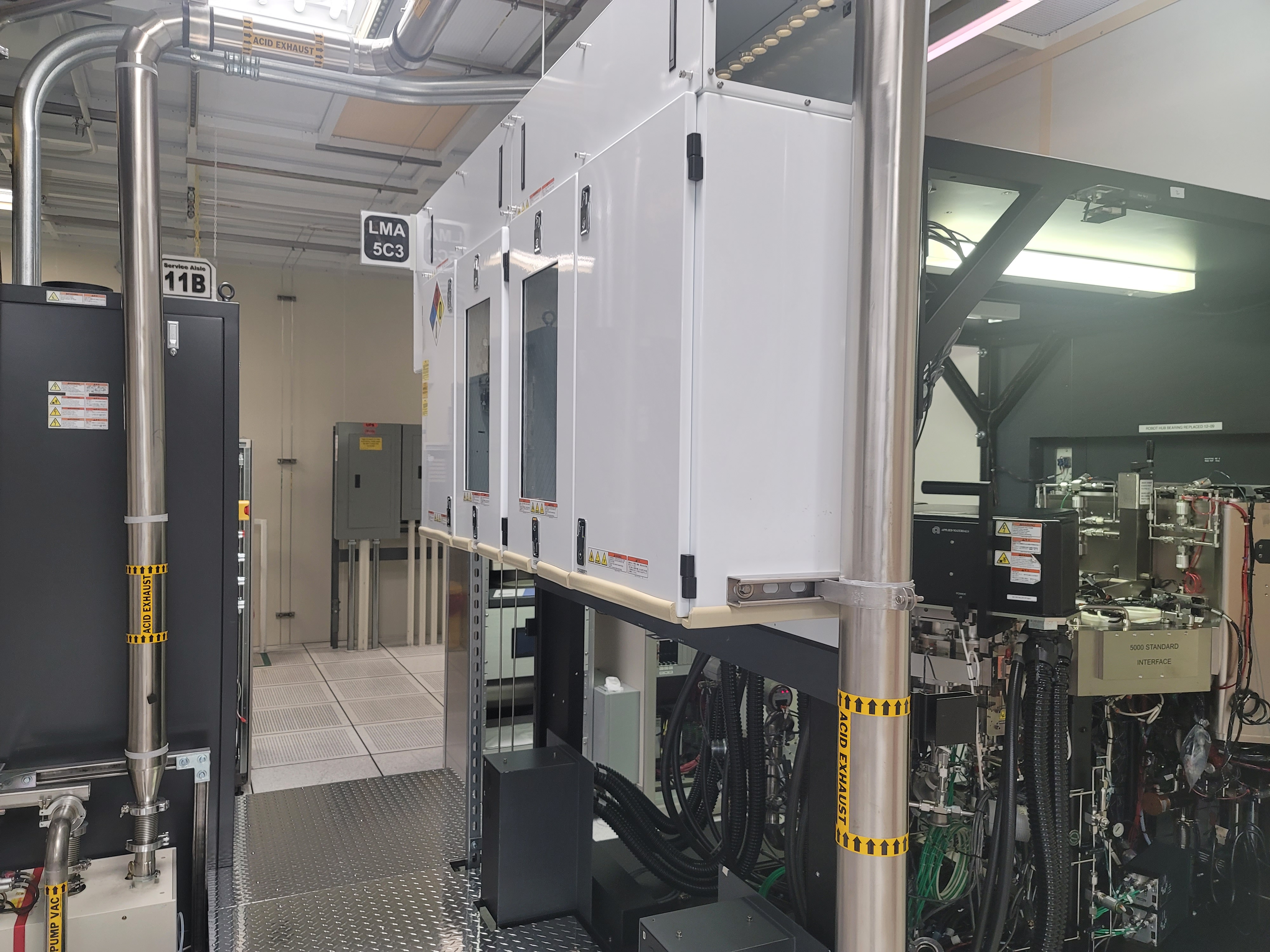

2004 AMAT Centura RTP

2 same config available

2 Xe chambers and 2 cool down chambers.

WAFER SIZE: 8 INCH

PROGRESS TYPE:

CHAMBER POSITION:

CH A - RTP

CH B - RTP

CH C - EMPTY

CH D - EMPTY

CH E - COOLDOWN

CH F - COOLDOWN

Buffer ROBOT : HP

CHILLER #1 : N/A

CH #A CONFIG

- TURBO :N/A

- C/M :

-SCR POWER CONTROLLER : SN

-ASTEX : 2495-I

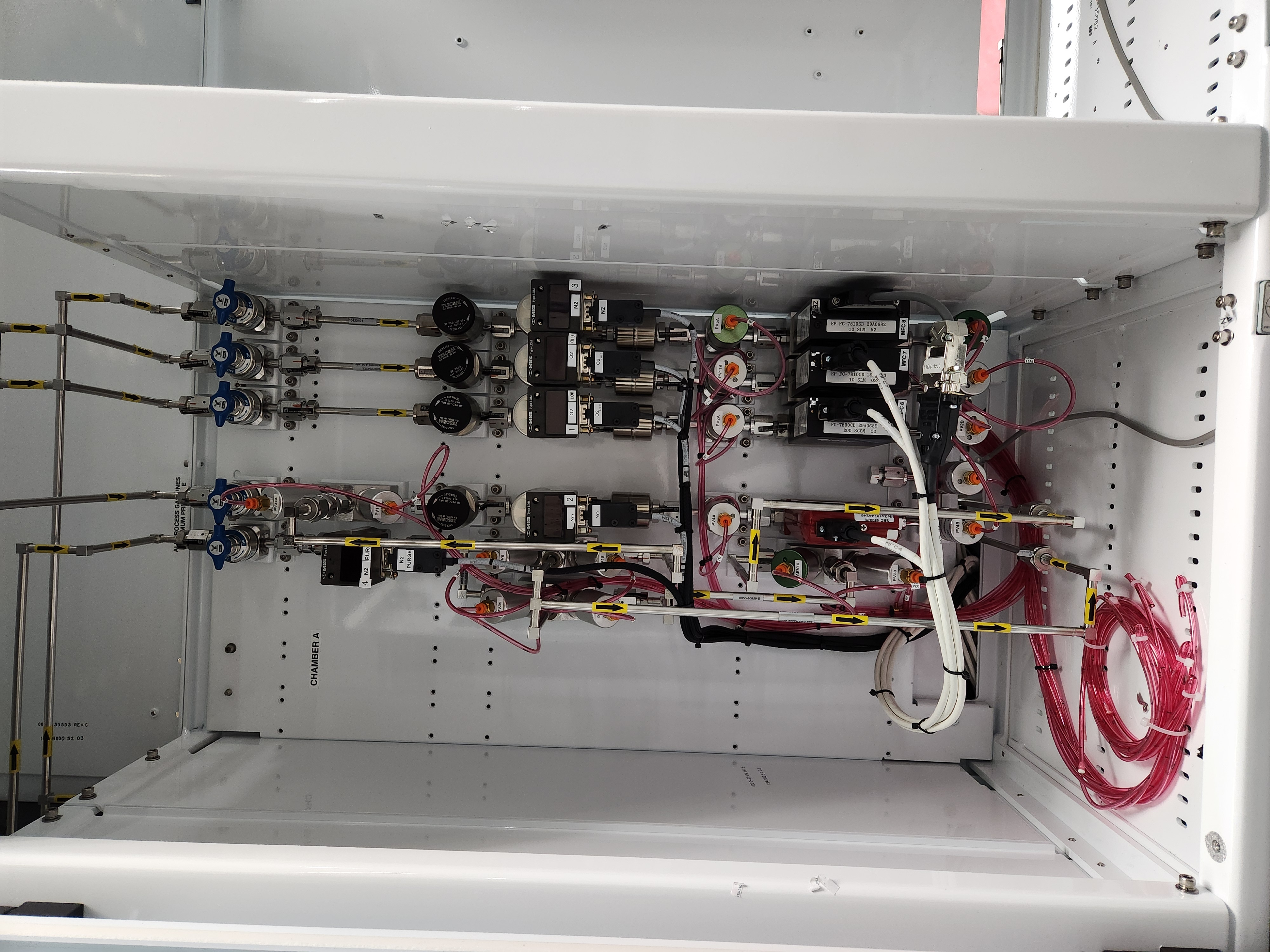

Gas Panel MFC GAS/LIQ Size

A 6 O2 200 sccm

7 O2 10 slm

8 N2 10 slm

NO 5 slm

CH #B CONFIG

- TURBO :N/A

- C/M :

-SCR POWER CONTROLLER : SN

-ASTEX : 5312

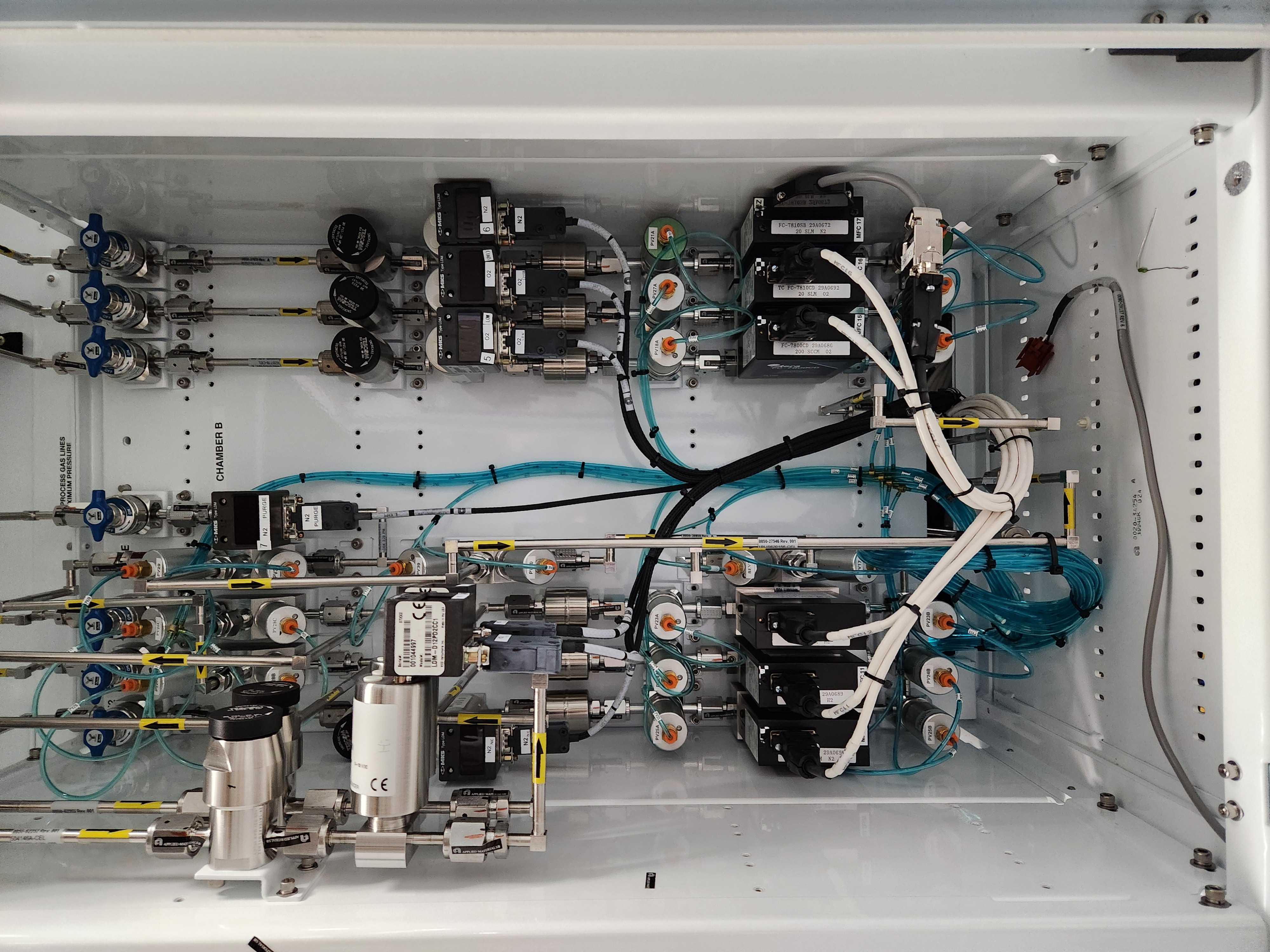

B MFC GAS SIZE

10 N2 10 slm

11 H2 1 slm

12 H2 10 slm

15 O2 200 sccm

16 O2 20 slm

17 N2 20 slm
