2014 JTS BMH80 ENVIRONMENTAL TEST CHAMBER

2014, JTS ENVIRONMENTAL TEST CHAMBER, MODEL BMH80 -40/+150P SINGLE PHASE, SERIAL NO U03002.

Dimensions - internal (H x W x D)mm 400 x 500 x 400

Dimensions (Hum) - external (H x W x D)mm 1275 x 750 x 875

Temperature range (ºC) -40ºC to +150ºC

Temperature stability ± 0.5ºC

Temperature distribution ± 1.0ºC

Rate of change - heating (ºC) 1.5ºC per minute average across the full range in accordance to IEC60068-3-5

Rate of change - cooling (ºC) 1.5ºC per minute average across the full range in accordance to IEC60068-3-5

Humidity range (%RH) 10% to 98% relative humidity (RH)

Humidity stability ± 3% RH

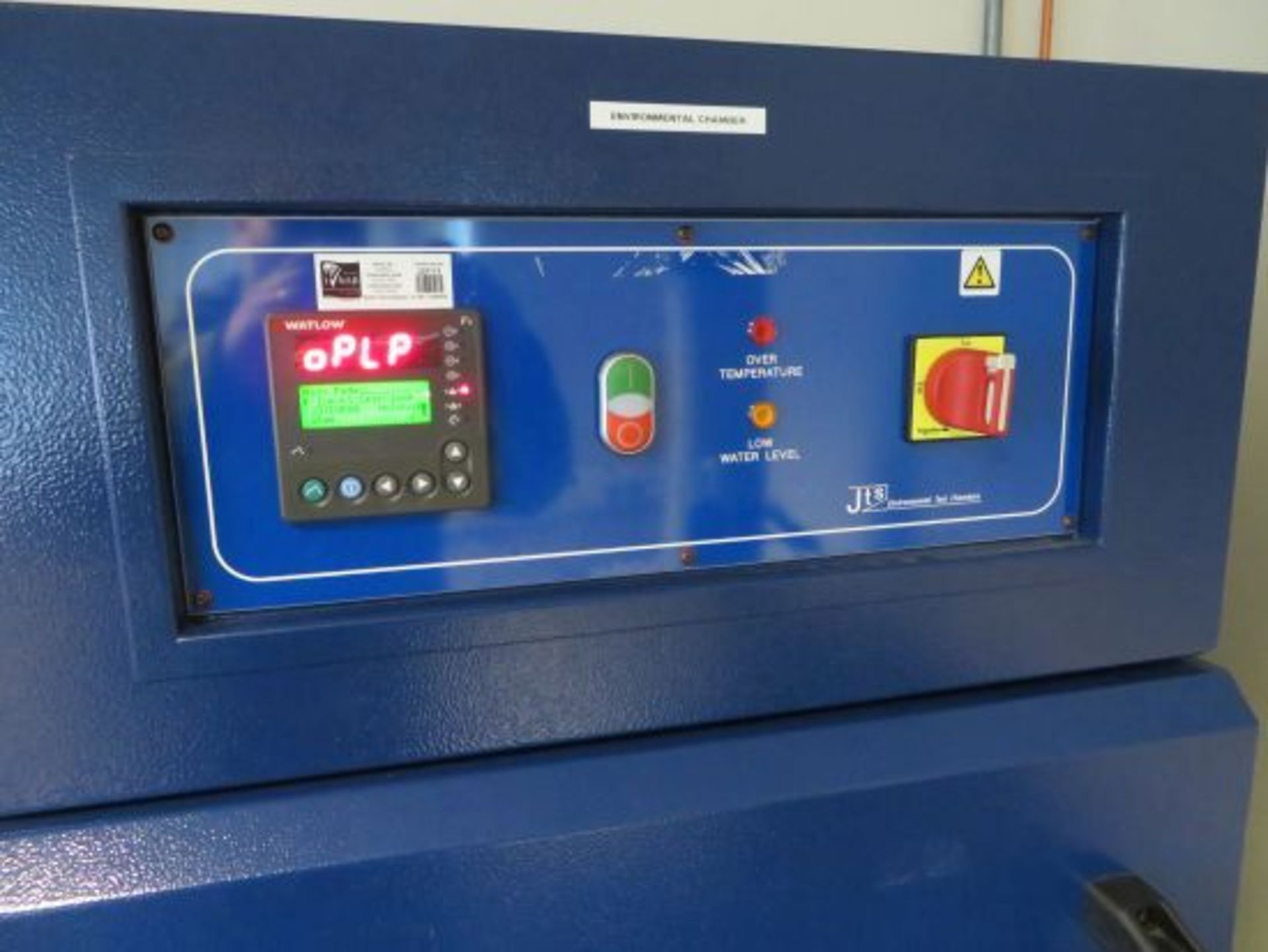

Programmer Watlow F4T (Touchscreen) - 40 programs / 50 segments per profile

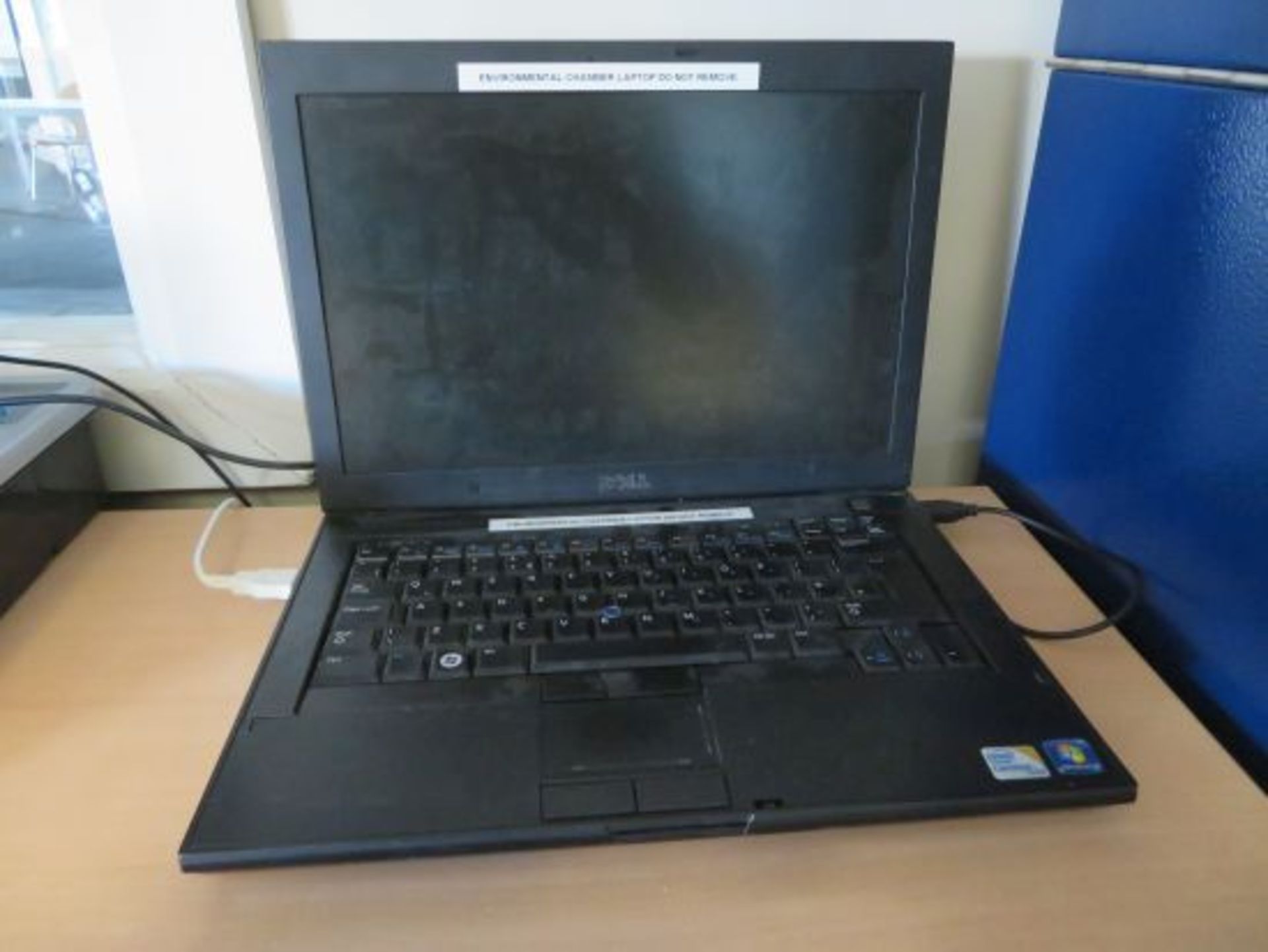

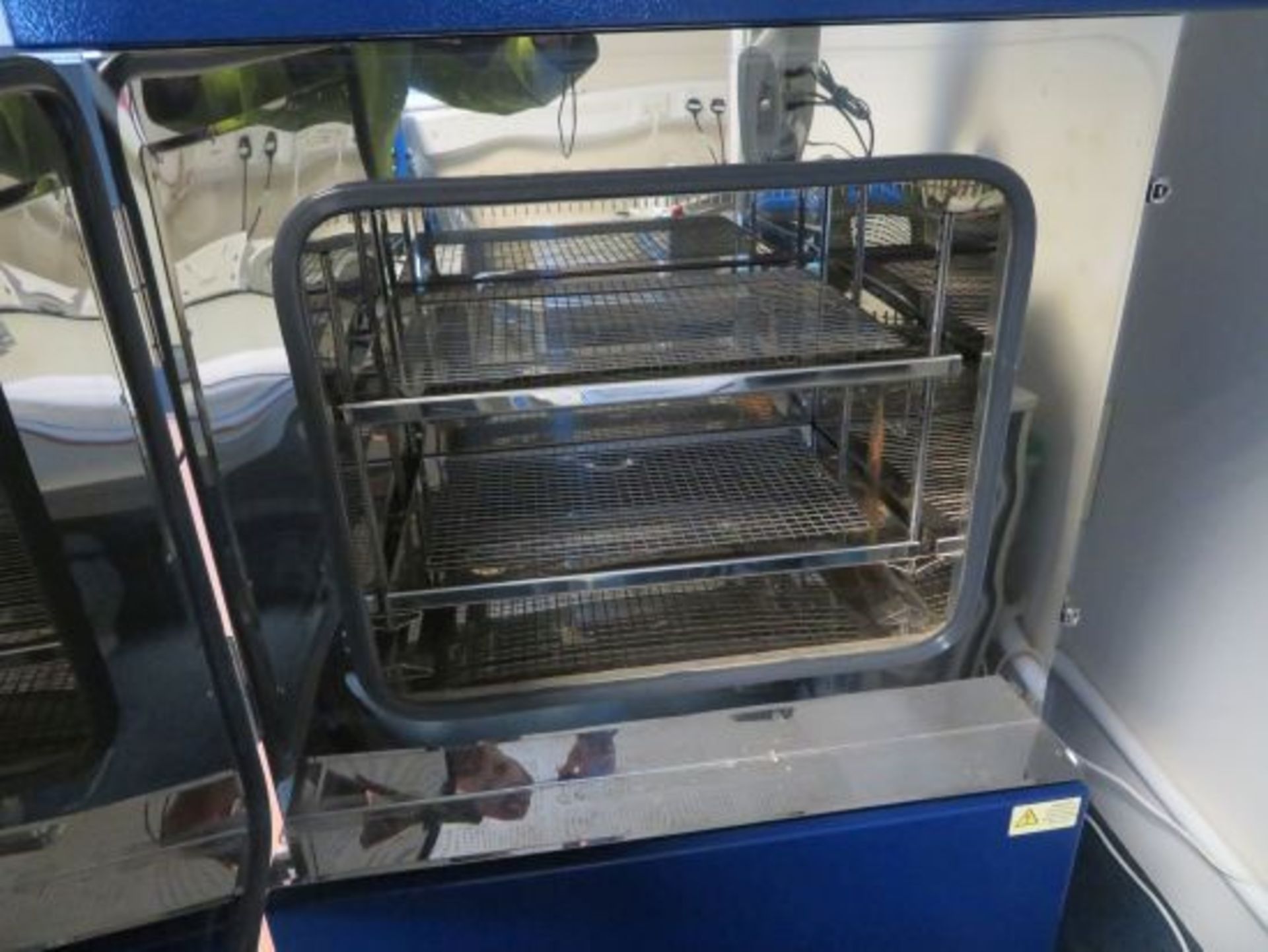

Options 2 off shelves / 1 off ø50mm Access Port / Trolley , Remote programming with laptop

Power supply 230 volts, 50Hz, 13 amps 230 volts, 50Hz, 13 amps

Weight (kg approx) 100kg 125kg

Made in UK
