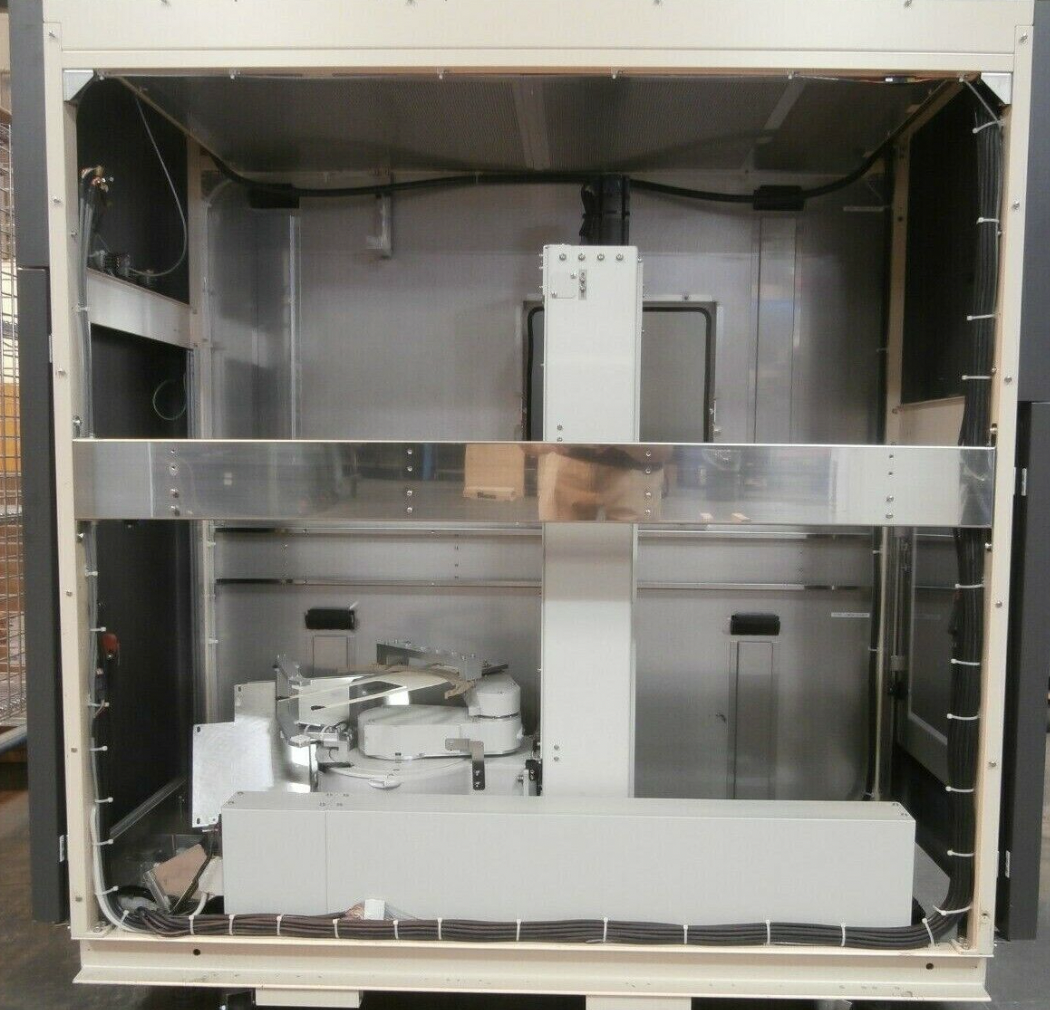

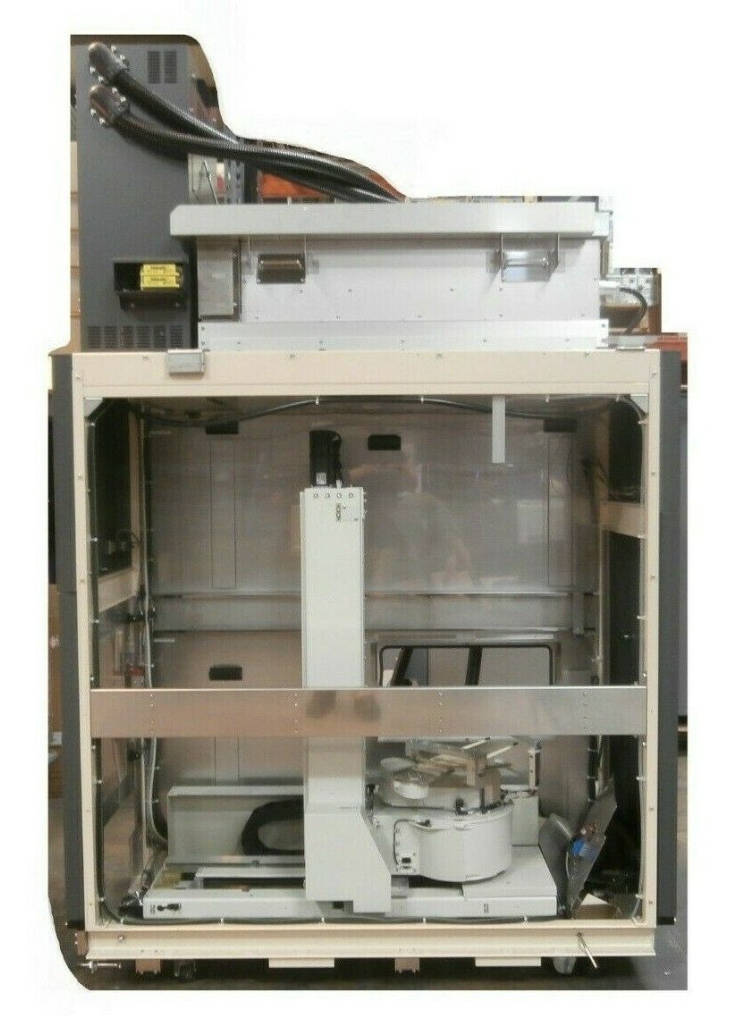

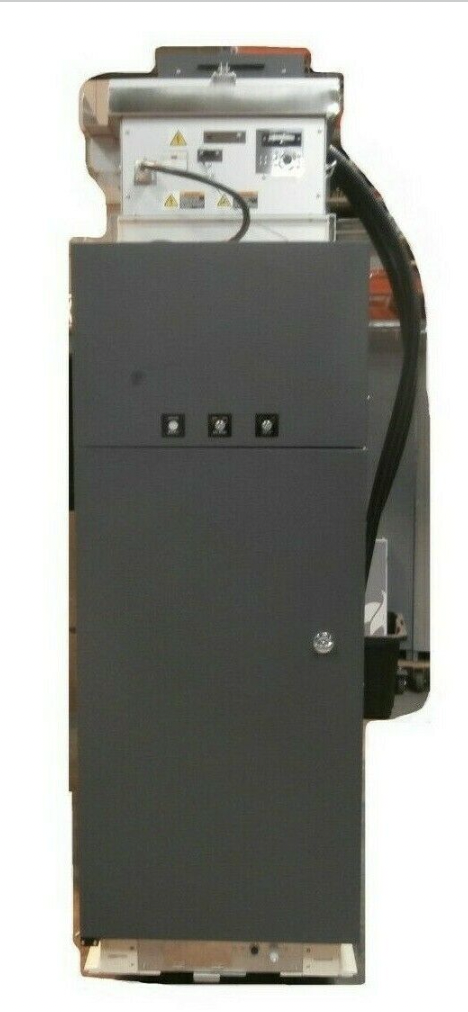

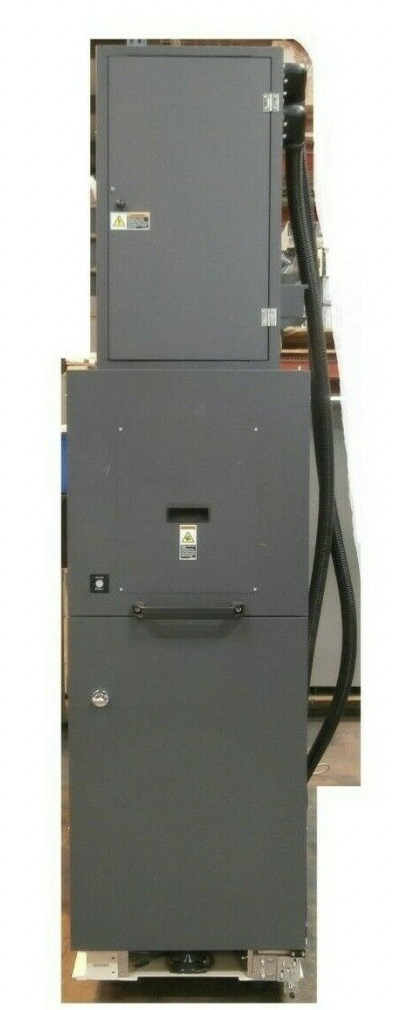

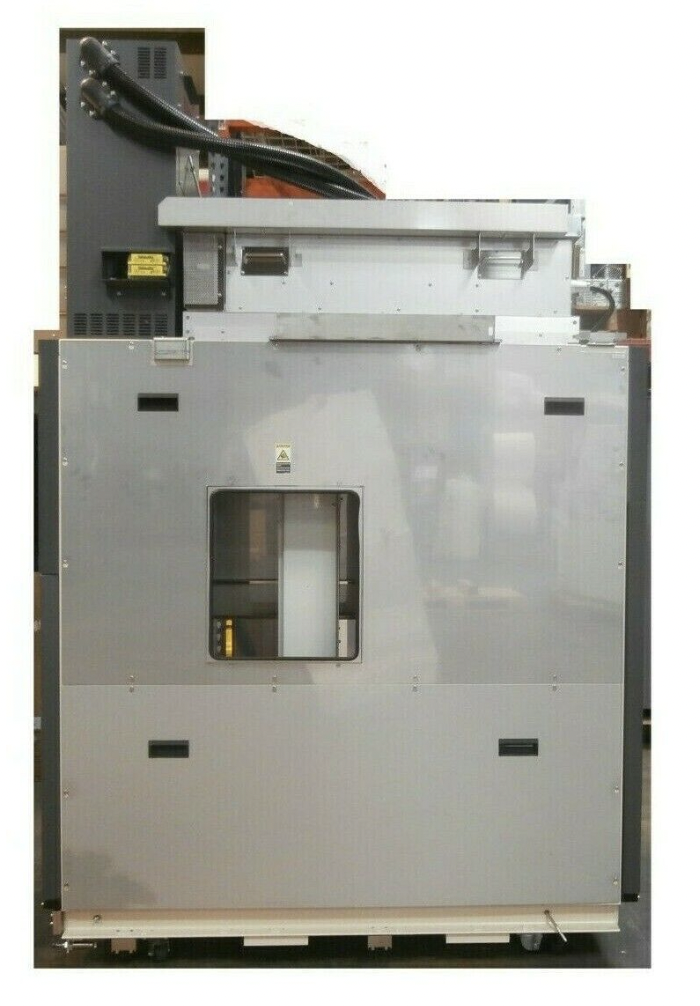

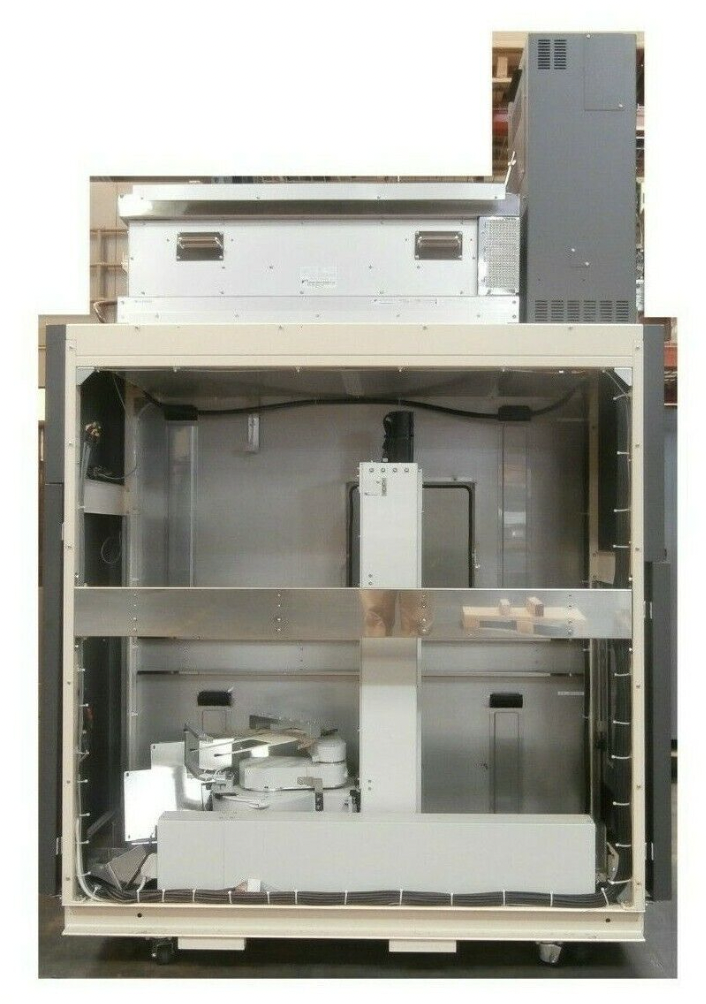

TEL IRAS Interface Block Robotic Arm Sub Lithius 5087-403675-12

Model No: IRAS (LITHIUS IPL), XT-AXIS

Interface Block Robotic Arm Sub

Removed from a TEL Tokyo Electron Clean Track Lithius System

Installed Components

PCB Part No: MPC-T0048A-11, BOARD, IO MTR #02, TOB1048

PCB Part No: BOARD, CONN IL #02, HA-016

PCB Part No: BOARD, IF FN #01, HA-017

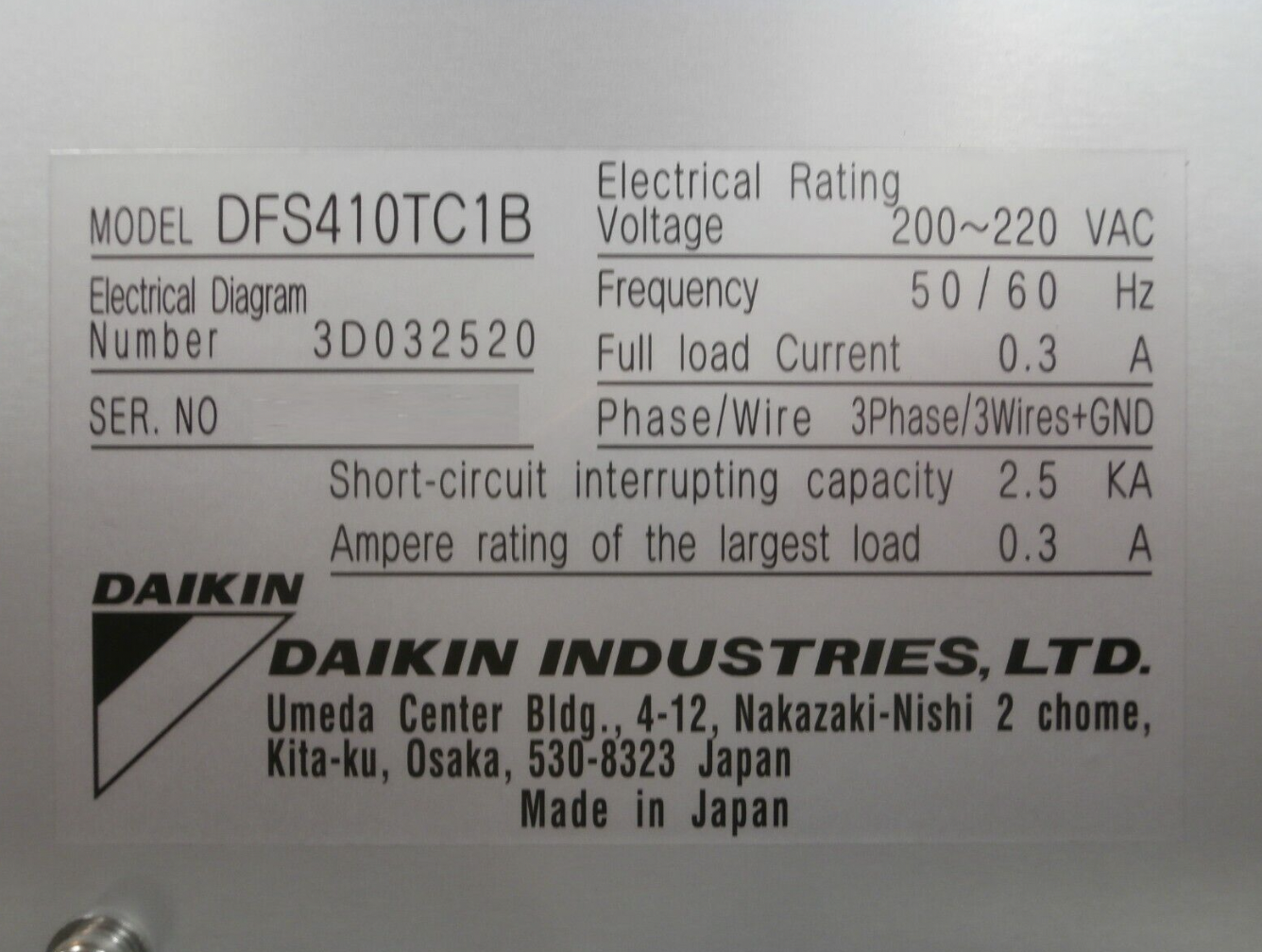

Daikin Industries FFU Part No: DFS410TC1B

Neurofine Part No: MMH4601000

Mitsubishi Industrial Robot and Track

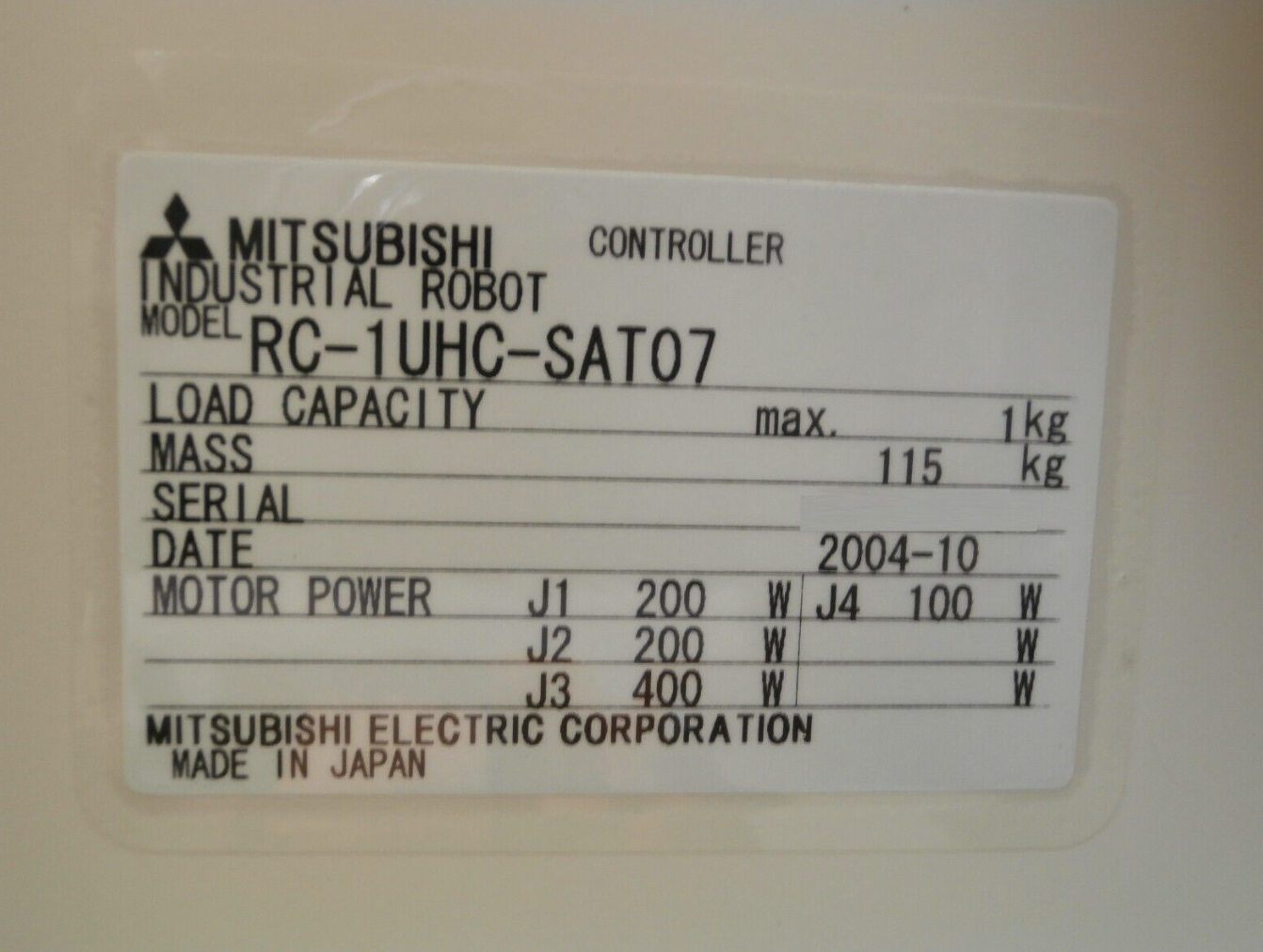

Mitsubishi Industrial Robot Controller Part No: RC-1UHC-SAT07

Mitsubishi Capacitor Part No: MR-J2S-BC001-QE

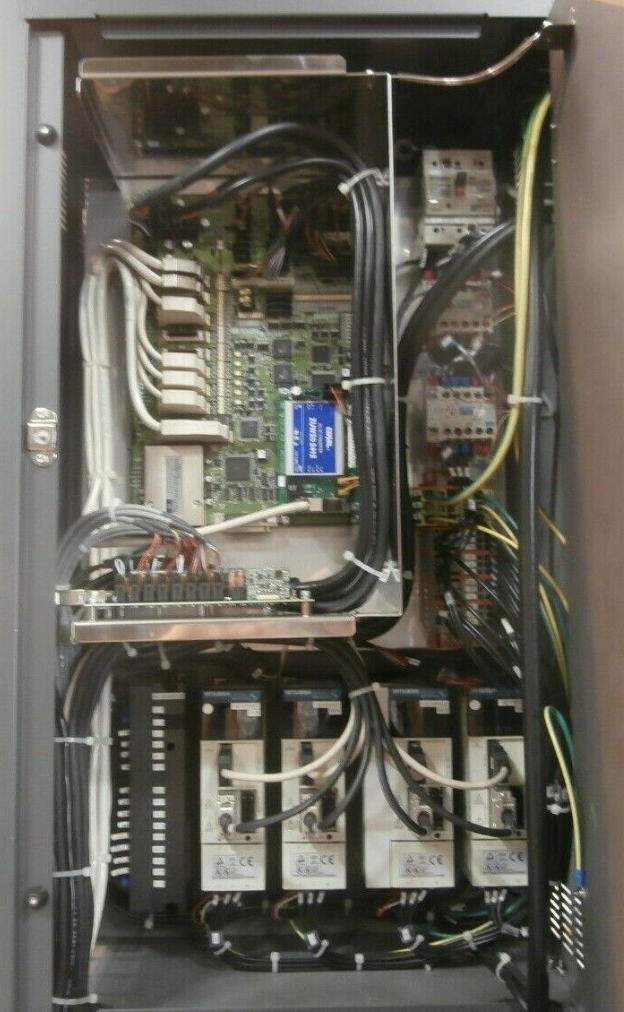

Mitsubishi MELSERVO Driver Part No: MR-J2S-20A-PQ108T020, SVX

Mitsubishi MELSERVO Driver Part No: MR-J2S-20A-PQ108T021, SVY

Mitsubishi MELSERVO Driver Part No: MR-J2S-20A-PQ108T022, SVZ

Mitsubishi MELSERVO Driver Part No: MR-J2S-20A-PQ108T023, SVT

Parts List

Assembly Part No: 5087-403675-12, IRAS (LITHIUS IPL), XT-AXIS

5080-192610-11 BASE,FORK IRAS BU160C718G51 1

5080-193449-11 COVER(1),TOP BU223C499H01 1

5080-193448-11 COVER(2),TOP BU224D498H01 1

5080-193450-11 COVER(1),SIDE BU223C500H01 1

5080-193463-11 COVER(X),IRAS BU224D499H01 3

5080-193451-11 COVER(T),IRAS BU141A436H01 1

5080-193452-11 COVER(T),UNDER BU223C501H01 1

5080-192602-11 BELT(X1),IRAS BU224D519H01 1

5080-192528-11 MOTOR,SERVO IRAS X #01 BU160C725G61 1

5080-192604-11 BELT(X2),IRAS BU224D521H01 1

5080-193444-11 BLOCK(X),IRAS BU224D508H01 1

5080-192603-11 BELT(X3),IRAS BU224D520H01 1

5080-192606-11 BELT(T),IRAS BU224D522H02 1

5080-192529-11 MOTOR,SERVO IRAS T #01 BU160C728G61 1

5080-192538-11 DC FAN,IRAS T #01 BU149C913G51 1

5080-192539-11 DC FAN,IRAS T #02 BU149C913G52 1

5080-192614-11 BRACKET(X),IRAS BU224D500H01 1

5080-192618-11 BRACKET(T),IRAS BU224D517H01 1

5080-192521-11 PHOTOSENSOR,IRAS #01 BU224D530H01 2

5080-193445-11 BRACKET(X),FRONT BU160A849G51 1

5080-192820-11 PHOTOSENSOR,IRAS X #01 BU149C948G61 1

5080-192821-11 PHOTOSENSOR,IRAS X #01 BU149C948G62 1

5080-194303-11 HANDLE(T),IRAS P938K000P88 1

5080-192874-12 X-AXIS,IRAS BU160A797G52 1

Assembly Part No: 5087-403676-11, IRAS (LITHIUS IPL), Z-AXIS

5080-193457-11 COVER(Z),UPPER BU223C453H01 1

5080-193458-11 COVER(Z),MIDDLE BU224D400H01 1

5080-192526-11 MOTOR,SERVO IRAS Z #01 BU160C727G51 1

5080-193447-11 DUCT(Z),IRAS BU160B851G51 1

5080-192540-11 DC FAN,IRAS Z #01 BU149C913G53 1

5080-193462-11 BRACKET(Z),IRAS BU224D497H01 1

5080-192521-11 PHOTOSENSOR,IRAS #01 BU224D530H01 1

5080-193459-11 COVER(Z),BELT BU224D108H02 2

5080-193454-11 COVER(Z),FRONT BU223C505H01 1

5080-193455-11 COVER(Z),LEFT BU223C490H01 1

5080-193456-11 COVER(Z),RIGHT BU223C491H01 1

5080-193453-11 BELT(Z),SEAL BU224D237H01 2

5080-192865-11 CABLE ASSY,IRAS Z #01 BU160C723G61 1

Assembly Part No: 5087-403677-11, IRAS (LITHIUS IPL),Y-AXIS

5080-193461-11 COVER(L),IRAS BU223C496H01 1

5080-192600-11 PCB,I/F IRAS BASE #01 TU817A078G64 1

5080-192612-11 COVER(Y),IRAS BU223C466H01 1

5080-192525-11 MOTOR,SERVO IRAS Y #01 BU160C726G51 1

5080-193446-11 BLOCK(Y),STOPPER BU160C850G51 1

5080-192615-11 BRACKET(Y),IRAS BU224D402H01 1

5080-192521-11 PHOTOSENSOR,IRAS #01 BU224D530H01 1

5080-192611-11 COVER(Y),LONG IRAS BU223C288H02 1

5080-193460-11 COVER(L),LONG BU223C495H01 1

5080-192858-11 CABLE ASSY,IRAS Y #01 BU160C722G61 1

Assembly Part No: 5087-403678-11, IRAS (LITHIUS IPL), CABLE

5080-192833-11 CABLE ASSY,IRAS MTR-X #02 BU229A002G61 1

5080-192837-11 CABLE ASSY,IRAS ENC-X #02 BU229A002G62 1

5080-192851-11 CABLE ASSY,IRAS MTR-T #02 BU229A002G63 1

5080-192854-11 CABLE ASSY,IRAS ENC-T #02 BU229A002G64 1

5080-192845-11 CABLE ASSY,IRAS MTR-Z #02 BU229A002G65 1

5080-192848-11 CABLE ASSY,IRAS ENC-Z #02 BU229A002G66 1

5080-192841-11 CABLE ASSY,IRAS MTR-Y #02 BU229A002G67 1

5080-192843-11 CABLE ASSY,IRAS ENC-Y #02 BU229A002G68 1

5080-192857-11 CABLE ASSY,IRAS BRK #02 BU229A002G69 1

5080-192827-11 CABLE ASSY,IRAS GND #02 BU229A002G71 1

5080-192828-11 CABLE ASSY,IRAS GND #03 BU229A002G72 1

5080-192859-11 CABLE ASSY,IRAS Y #02 BU229A002G81 1

5080-192860-11 CABLE ASSY,IRAS Y #03 BU229A002G82 1

5080-192861-11 CABLE ASSY,IRAS Y #04 BU229A002G83 1

5080-192862-11 CABLE ASSY,IRAS Y #05 BU229A002G84 1

5080-192863-11 CABLE ASSY,IRAS Y #06 BU229A002G85 1

5080-192864-11 CABLE ASSY,IRAS Y #07 BU229A002G86 1

5080-192834-11 CABLE ASSY,IRAS MTR-X #03 BU229A003G61 1

5080-192838-11 CABLE ASSY,IRAS ENC-X #03 BU229A003G62 1

5080-192852-11 CABLE ASSY,IRAS MTR-T #03 BU229A003G63 1

5080-192855-11 CABLE ASSY,IRAS ENC-T #03 BU229A003G64 1

5080-192846-11 CABLE ASSY,IRAS MTR-Z #03 BU229A003G65 1

5080-192849-11 CABLE ASSY,IRAS ENC-Z #03 BU229A003G66 1

5080-192829-11 CABLE ASSY,IRAS GND #04 BU229A003G71 1

5080-192830-11 CABLE ASSY,IRAS GND #05 BU229A003G72 1

5080-192866-11 CABLE ASSY,IRAS Z #02 BU229A003G81 1

5080-192867-11 CABLE ASSY,IRAS Z #03 BU229A003G82 1

5080-192868-11 CABLE ASSY,IRAS Z #04 BU229A003G83 1

5080-192869-11 CABLE ASSY,IRAS Z #05 BU229A003G84 1

5080-192870-11 CABLE ASSY,IRAS Z #06 BU229A003G85 1

5080-192835-11 CABLE ASSY,IRAS MTR-X #04 BU229A004G61 1

5080-192839-11 CABLE ASSY,IRAS ENC-X #04 BU229A004G62 1

5080-192826-11 CABLE ASSY,IRAS GND #01 BU229A004G71 1

5080-192871-11 CABLE ASSY,IRAS T #01 BU229A004G81 1

5080-192872-11 CABLE ASSY,IRAS T #02 BU229A004G82 1

5080-192873-11 CABLE ASSY,IRAS T #03 BU229A004G83 1

5080-192832-11 CABLE ASSY,IRAS MTR-X #01 BU229A001G61 1

5080-192836-11 CABLE ASSY,IRAS ENC-X #01 BU229A001G62 1

5080-192850-11 CABLE ASSY,IRAS MTR-T #01 BU229A001G63 1

5080-192853-11 CABLE ASSY,IRAS ENC-T #01 BU229A001G64 1

5080-192844-11 CABLE ASSY,IRAS MTR-Z #01 BU229A001G65 1

5080-192847-11 CABLE ASSY,IRAS ENC-Z #01 BU229A001G66 1

5080-192840-11 CABLE ASSY,IRAS MTR-Y #01 BU229A001G67 1

5080-192842-11 CABLE ASSY,IRAS ENC-Y #01 BU229A001G68 1

5080-192856-11 CABLE ASSY,IRAS BRK #01 BU229A001G69 1

5080-192831-11 CABLE ASSY,IRAS GND #06 BU229A001G71 1

5080-192583-11 CABLE ASSY,IRAS #01 BKO-FA0709H05 1

5080-192542-11 AC CABLE,IRAS CTRL-X #01 BU283C342G51 1

5080-192544-11 AC CABLE,IRAS CTRL-Y #01 BU283C342G52 1

5080-192546-11 AC CABLE,IRAS CTRL-Z #01 BU283C342G53 1

5080-192548-11 AC CABLE,IRAS CTRL-T #01 BU283C342G54 1

5080-192550-11 AC CABLE,IRAS #02 BU284D408G61 1

Assembly Part No: 5087-403679-12, IRAS (LITHIUS IPL), DRIVER

5080-193486-11 MOTOR DRIVER,IRAS X #02 BU160C796G61 1

5080-193487-11 MOTOR DRIVER,IRAS Y #02 BU160C796G62 1

5080-193488-11 MOTOR DRIVER,IRAS Z #02 BU160C796G63 1

5080-193489-11 MOTOR DRIVER,IRAS T #02 BU160C796G64 1

5080-192601-11 #CAPACITOR,IRAS #01 MR-J2S-BC001-QE 1

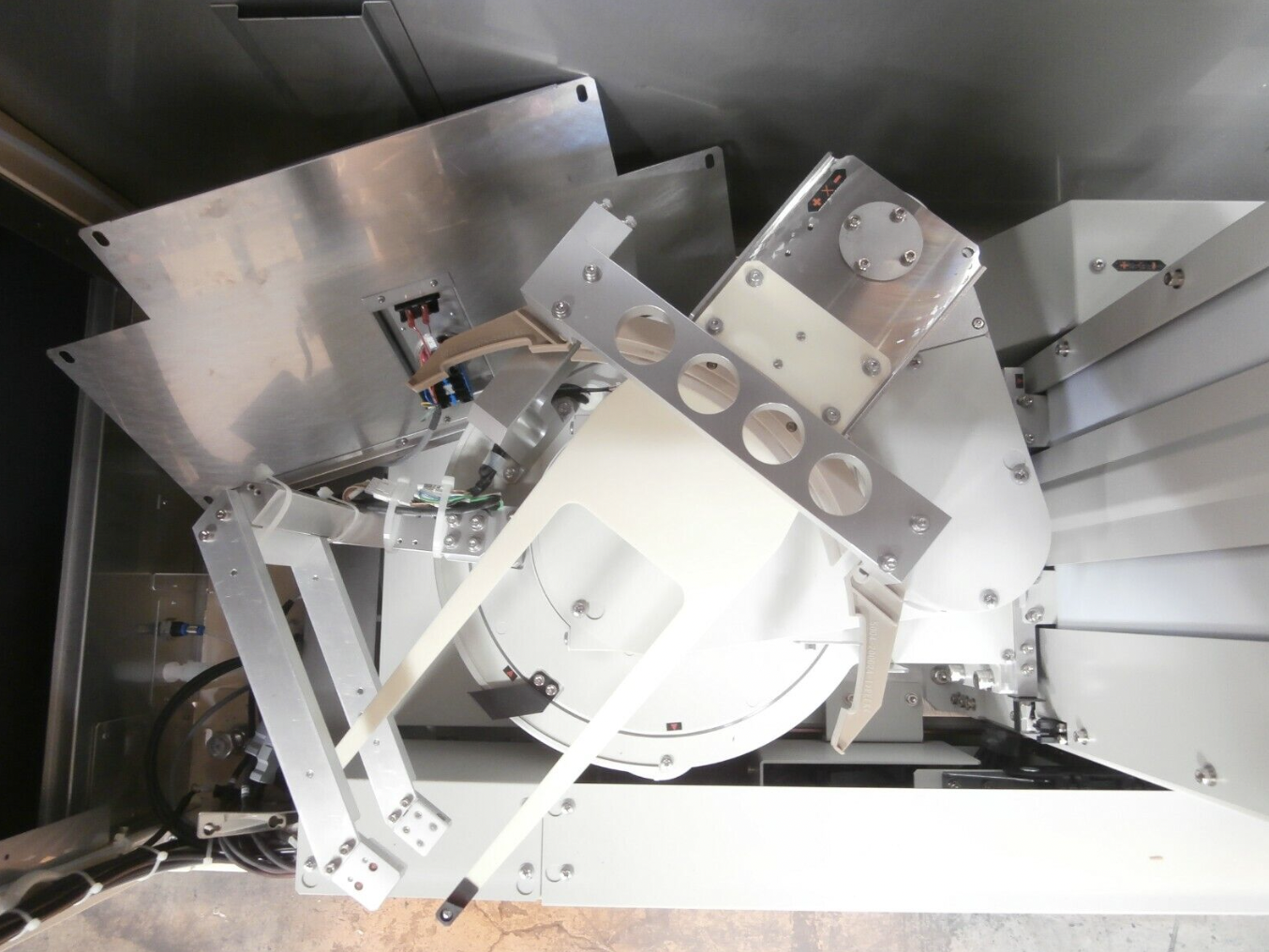

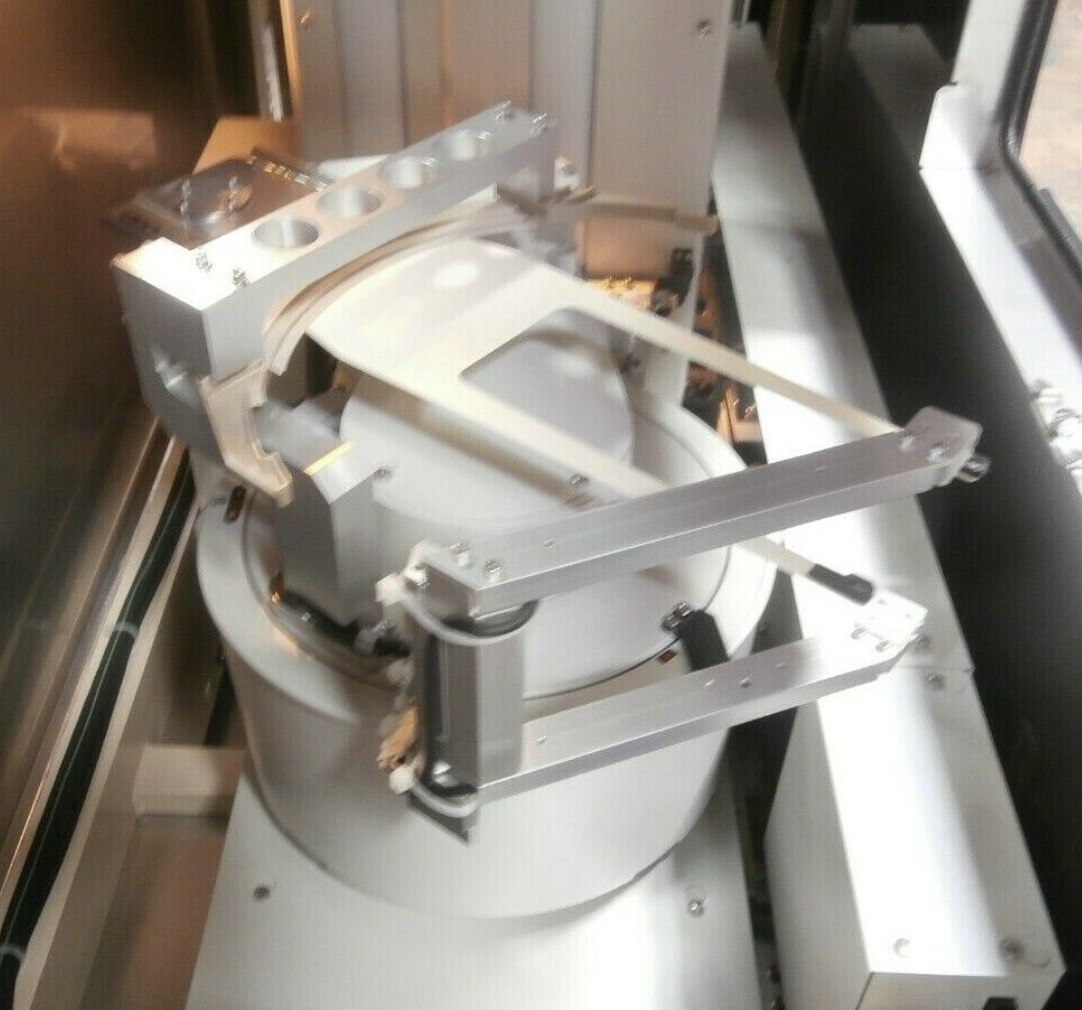

Assembly Part No: 5085-405392-12, FORK ASSY, IRAS

5080-191950-11 FORK,IRAS K8757-01-0 1

5004-400012-11 BLOCK(1),FRONT IRAS 1

5004-400009-11 BLOCK(2),FRONT IRAS 1

5010-406677-11 BLOCK,IRA CENTER 1

This TEL Tokyo Electron IRAS Interface is used working surplus. The physical condition is good, but there are signs of previous use and handling.
