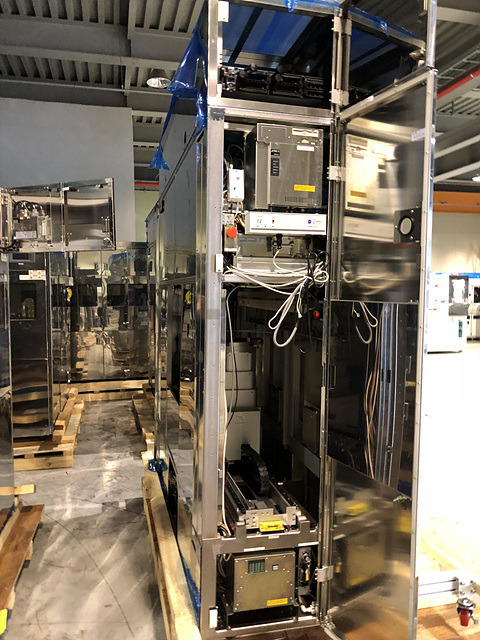

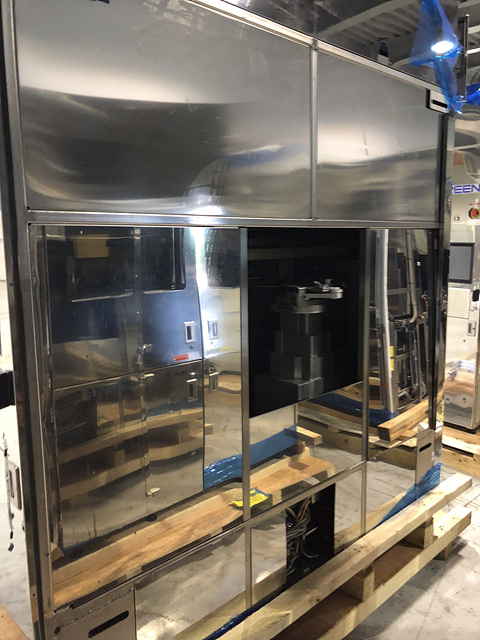

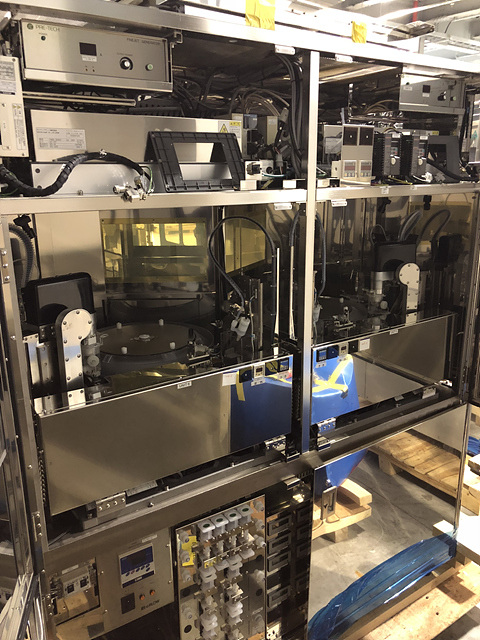

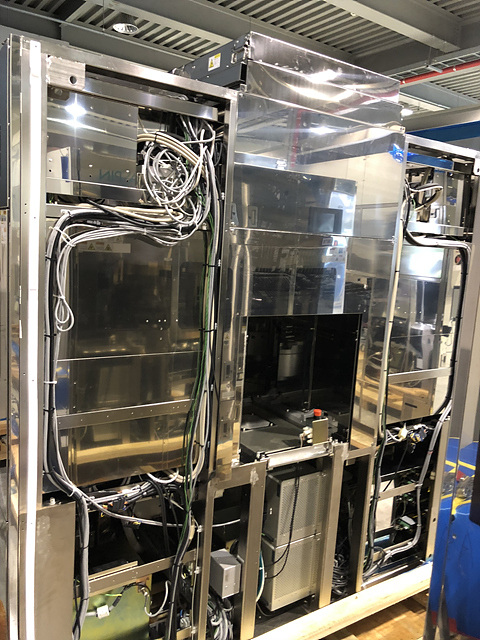

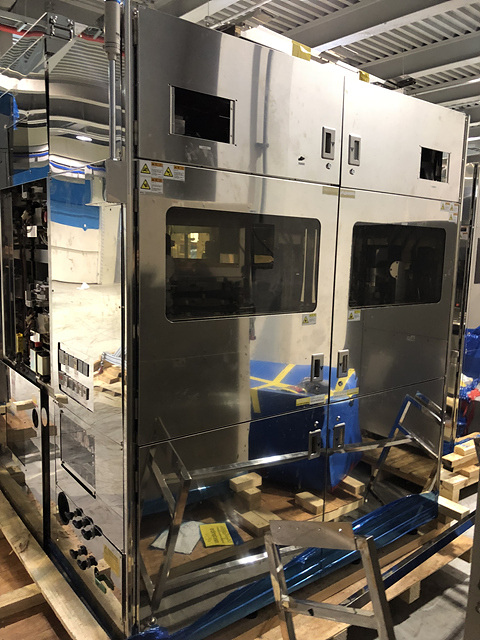

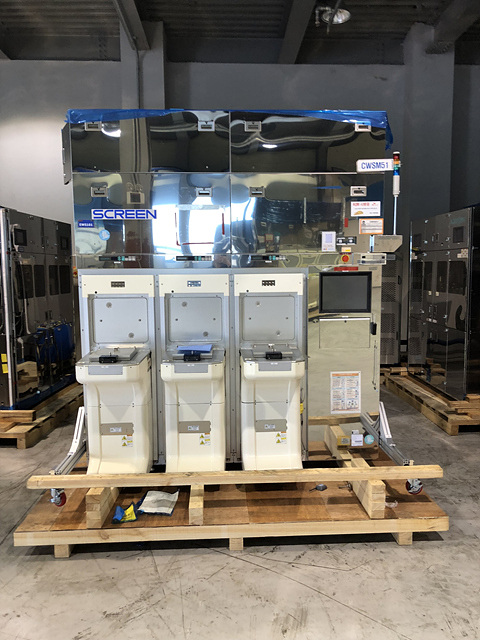

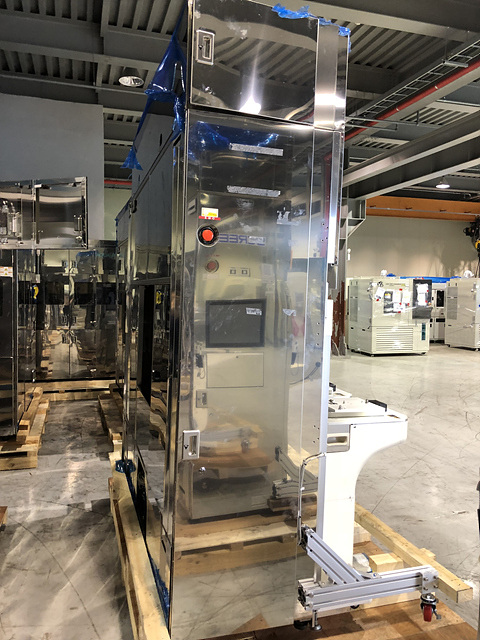

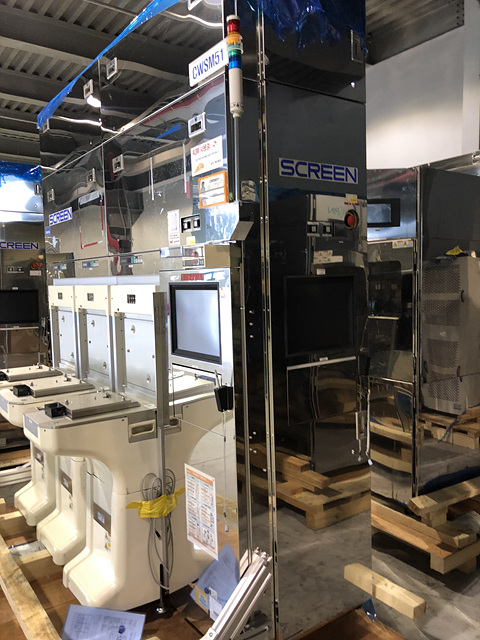

2004 DNS SS 3000-AR

With Software and HDD

As Is

Wafer size 12"

Process WAFER SCRUBBER

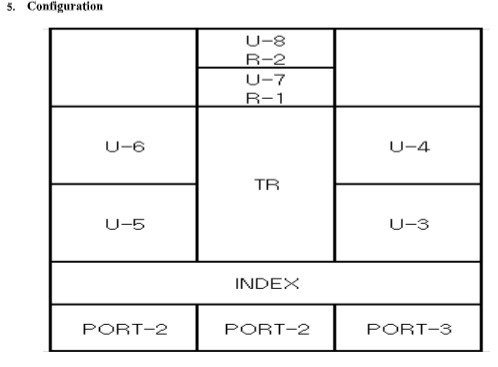

1) SYSTEM COMPOSITION

SS 3000-AR: 4 BACK SIDE

1: Load Port 3

2: INDEX UNIT 1

3: MAIN BODY 1

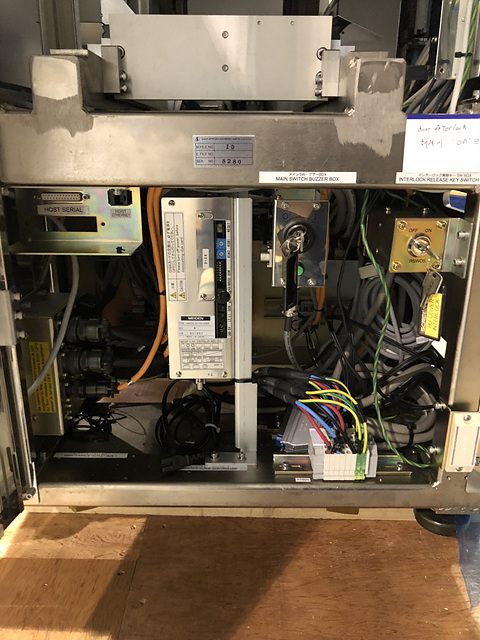

4: POWER BOX 1

2) GENERAL SPEC

WAFER: TYPE THICKNESS DIAMETER

MAIN PRESSURE ALARM: DI,AIR,EXH,N2,C02

PROCESS FORMULA

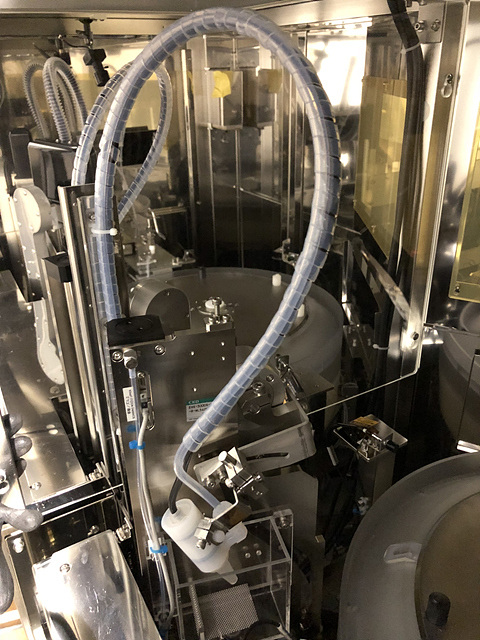

BRUSH NOZZLE: UNIT-3,4,5,6

N2 MASS FLOW: UNIT-3,4,5,6 NANO SPRAY Nozzle

DI FILTER(4EA:0.05um): UNIT-3,4,5,6

SPIN CHUCK TYPE: MAGNETIC CHUCK TOTAL 6EA (LOCK,UN LOCK 2EA)

WAFER SENSOR: WAFER DETECTOR SENSOR 4EA

REVERSE UNIT: UNIT-7,8 REVERSE UNIT-1,2

ULTRA SONIC FLOW METE: DIW,BACK RINSE,SPRAY NOZZLE,BRUSH RINSE

E-FLOW: UNIT-3,4,5,6 NANO SPRAY Nozzle

NANO SPRAY NOZZLE: 1 NOZZLE

DI RINSE NOZZLE: 2 Front Rinse Nozzle

DI BACK RINSE NOZZLE: 1 BaCk Rinse Nozzle

3)SYSTEM

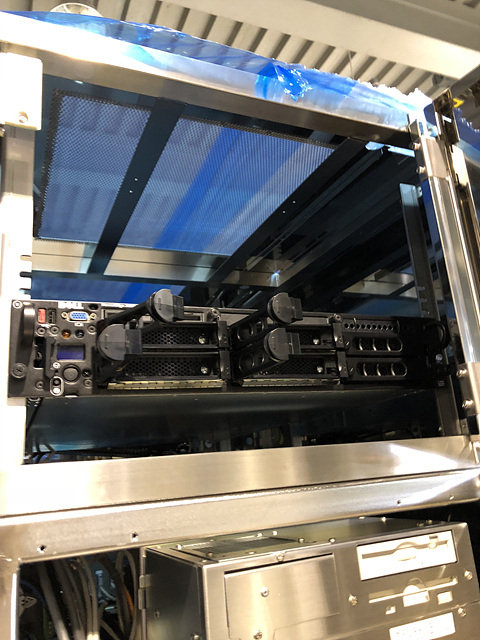

HOST H/D: 1 H/D

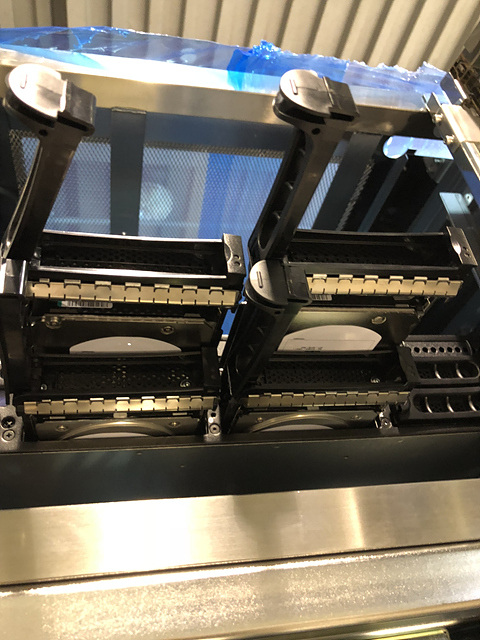

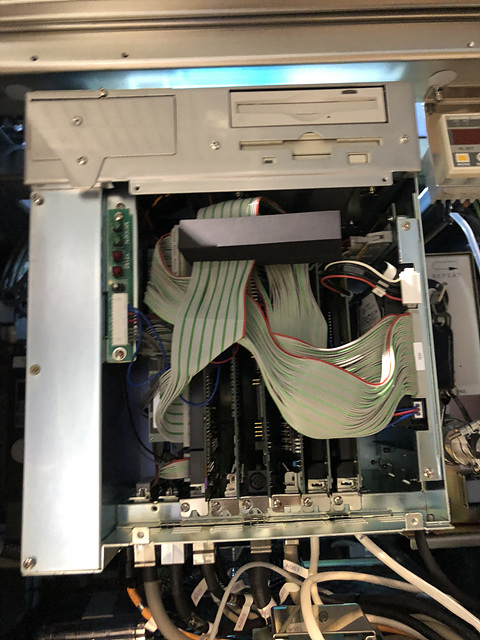

MAIN PC H/D: 2 H/D

HUB BOX: 4 H/D

LOAD PORT: SENSOR AREA SENSOR USE

IONIZER: INDEX POSITION
